Pipe and Duct Markers
Pipe and Duct Markers
Lightline Commercial
Build your pipe or duct marker
Choose the marker type, pipe size, label width, legend text, font, flow arrows, and orientation. Automatic length grows as wording is added and the selected variant price updates from that final length. These selections save to the cart as production details with the selected supply color, print color, label width, length, and estimated unit price.
Automatic length increases as text is added. Base pricing covers the first 12"; each additional inch is priced by label width. Maximum label length is 48" for 1"-3" labels and 65" for 4" labels. Text is capped when the calculated length reaches the selected label maximum.
Vertical orientation changes the actual marker layout with upright stacked letters and flow arrows at the top and bottom.
Additional available supply colors: Yellow, White, Black, Red, Green, Orange, Blue, Gray, Purple, Brown, Clear, Pink, Gold, Silver Gray, Light Blue, Hi-Vis Pink, Hi-Vis Yellow, Hi-Vis Orange, Hi-Vis Green.
The builder controls the Shopify variant price and saves all production details to cart/order. After adding, you stay on this page so you can build another marker.
Label Preview
Recommended Ribbon: White
Label Width: 2"
Length: 12.00"
Code Min. Text Height: 1.30"
Code Min. Label Length: 12"
Est. Unit Price: $2.75 / label
Color and arrow recommendations are based on common ANSI/ASME A13.1 pipe identification practices. Customer is responsible for confirming final project and specification requirements before ordering.

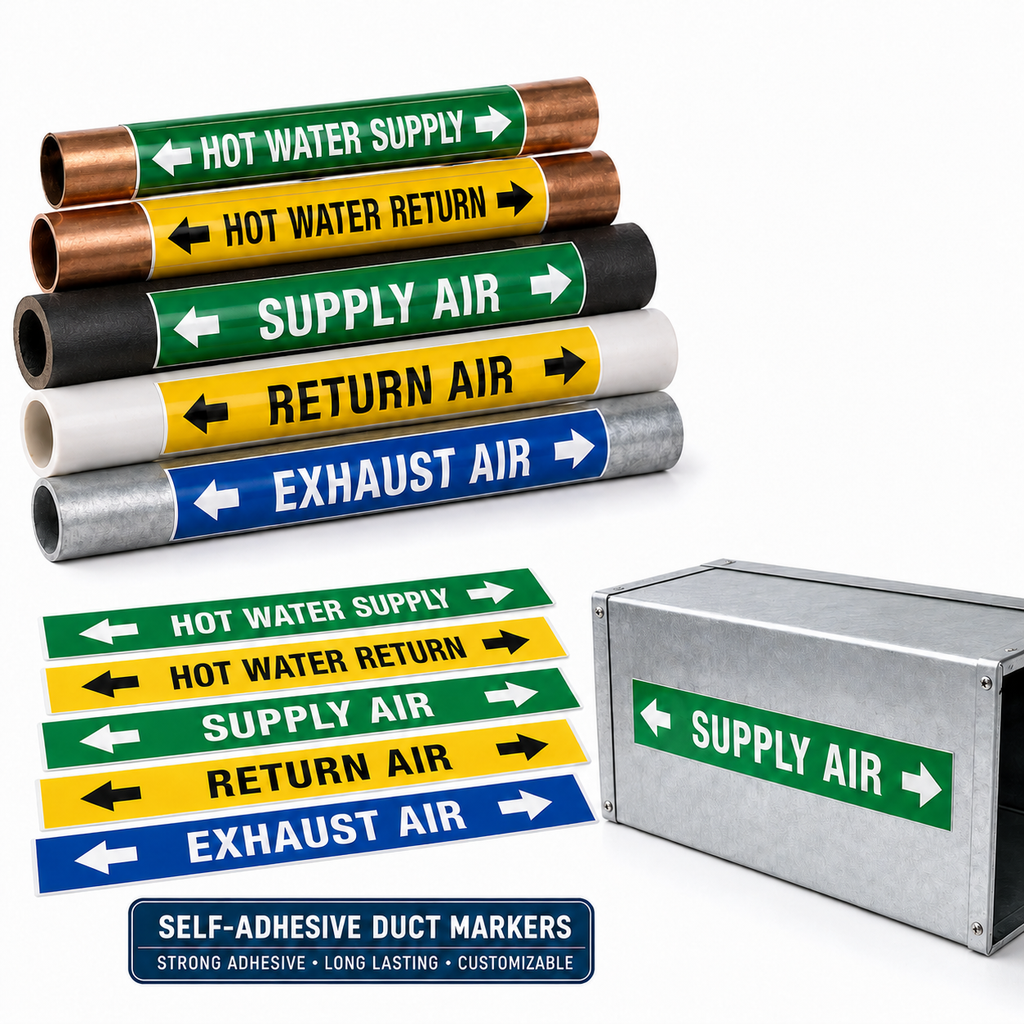

Custom Printed Pipe and Duct Markers
Custom printed pipe and duct markers for commercial and industrial use. Choose marker type, pipe diameter range, label width, length, text, font, flow arrows, and vertical orientation.
Each variant is priced by label width and finished marker length. The product builder captures color type, recommended supply color, recommended ribbon/print color, marker text, font, arrows, and vertical orientation as cart/order details for production.
Pricing: 1" width labels are $1.99 for the first 12" plus $0.12 per additional inch. 2" width labels are $2.75 for the first 12" plus $0.25 per additional inch. 3" width labels are $3.25 for the first 12" plus $0.35 per additional inch. 4" width labels are $3.75 for the first 12" plus $0.42 per additional inch.
Labels start at the required code minimum length for the selected pipe diameter. Base pricing covers 0" through 12"; each additional inch after 12" is priced by label width. Maximum label length is 48". Final project specifications, color requirements, flow direction, and code compliance must be confirmed by the customer before ordering.
